# Encrption Guide

# 1.1 Overview of encryption scheme

In order to protect the user's sensitive information from being leaked, when calling the verify and liveness interfaces, FinAuth encrypts the strings and images involving user information in the parameters and return values passed in the interface. The encryption rules are as follows:
a. Encryption of parameters passed through the interface
Encryption method
FinAuth generates a key pair and provides the public key in the console. The application uses the public key to encrypt the parameters when adjusting the interface, and FinAuth uses the private key to decrypt.
Encrypted content

interface	Encryption parameters	illustrate
compare	image	User-owned photos passed in
compare	image_ref	Reference face photo provided by the application

# 1.2 How to enable encryption

Encryption is configured through the encryption_type field, and the encryption supported RSA encryption method is configured through the following rules:

When encryption_type is configured as "0", encryption is not enabled;
When encryption_type is configured as "2", RSA encryption is used.

# 2 Key configuration

# 2.1 How to generate a key

# RSA generate key

RSA encryption and decryption uses a 1024bit key, and padding uses PKCS#1.

Public and private key generation

The public and private keys must be in standard PEM format, refer to the generation based on openssl https://blog.csdn.net/aa464971/article/details/51035200

Example

Public key：

Private key：

# 2.2 How to upload the key

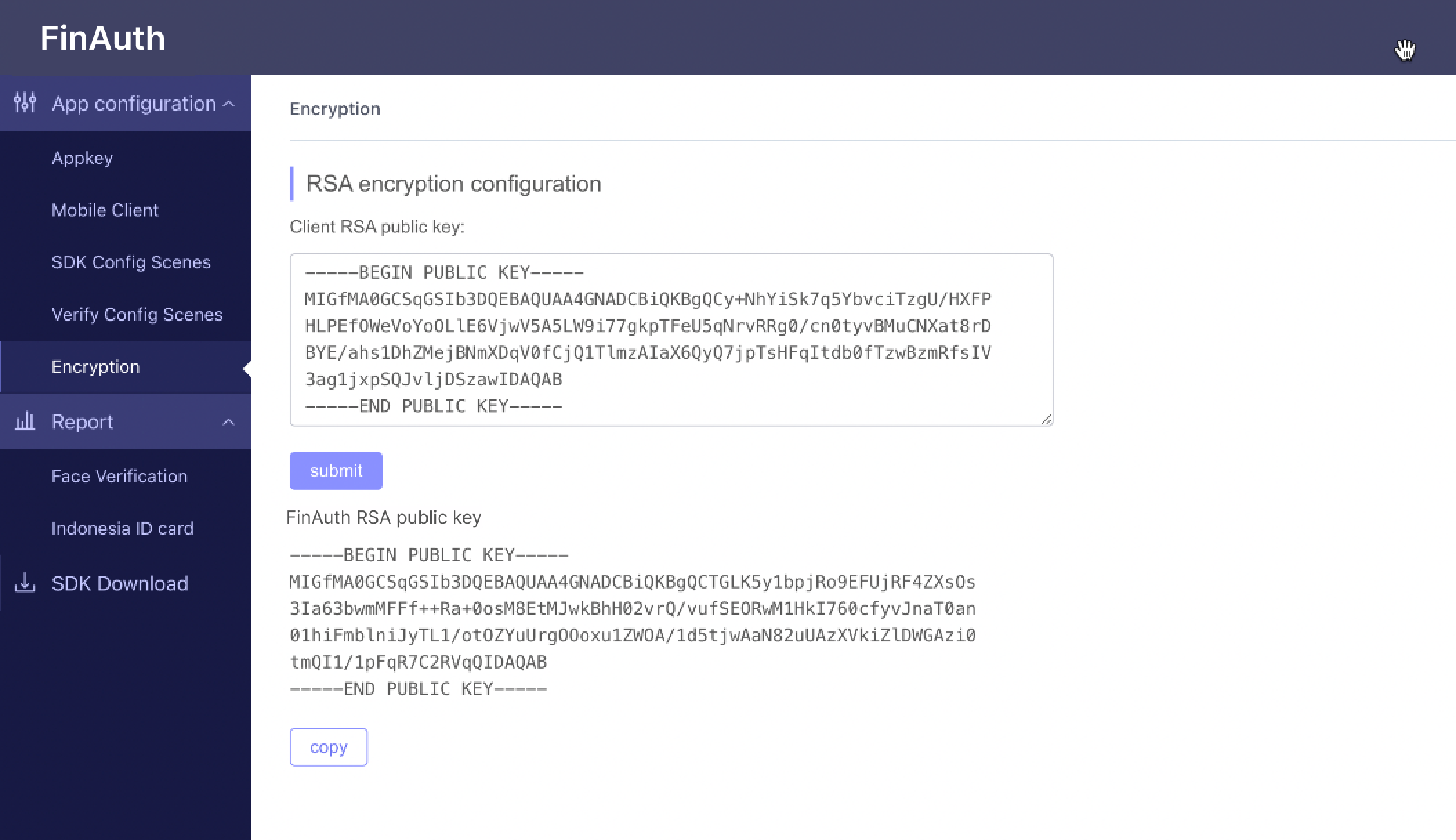

In the configuration of the console, click Information Encryption, fill in the generated key into the RSA encryption configuration, and then click Submit. The FinAuth RSA public key is displayed below the submit button, indicating that the upload is successful

# 3 Encryption and decryption examples

# 3.1 Image encryption

# a. Encrypted object

interface	Encryption parameters	illustrate
compare	image	User-owned photos passed in
compare	image_ref	Reference face photo provided by the application
liveness	image_ref	Reference face photo provided by the application

# b. Encryption instructions

The process of generating encrypted images is as follows:

Calculate picture len;
If len<=1024, encrypt the full text of the image. Use the public key to encrypt. After encryption, the string length int (len) is generated. len is converted into 4 bytes and added to the end of the file. Base64 encode the encrypted string to generate the final encrypted image data;
If len > 1024, only the first 1024 bytes of data are encrypted. The data after 1024 bytes are not encrypted and are directly spliced after the encrypted string. The encryption method is the same as above. Please note: the 4 bytes converted by len should be added to the end of the entire file instead of the end of the encrypted string.

# c. Specific methods

ENC is the encryption method. If the RSA method is used, ENC is RSA.en

len<=1024: original image data ---→data1 after ENC encryption---→ data1+len(data1) ----→Base64(data1+len(data1))
len>1024: original image data ---→data[1024] ENC encrypted data1---→ data1+unencrypted content data2+len(data1) ----→Base64(data1+data2+len(data1))

# d. Example formula (len>1024)

en_data = ENC(image[1024]) // Encrypt 1024 bytes
Base64.en(en_data+plain_data+len(en_data)); // Base64 encryption result

# 4 Encryption and decryption sample code

Please contact FinAuth customer support or your business representative for assistance.
